| Product parameters | ||
| Infrared Thermal Imaging | Power supply | USB 5V+-10% |
| Power Consumption | Normal operation <0.85W | |
| When the blocking plate is opened for calibration <1.6W | ||
| Sensor type | Vanadium oxide uncooled infrared focal plane detector | |
| Resolution ratio | 256*192 | |
| Angle of viewing field | 56°*42°；horizontal:56°×Vertical:42° | |
| Pixel size | 12pm | |
| Noise equivalent temperature difference | ≤60mk(<50mk@25℃F#1.0 25Hz) | |
| Image capture frequency | <25Hz | |
| Focal length of thermal imaging lens | 3.2mm | |
| Thermal imaging aggregation mode | Athermal fixed focus lens | |
| Aperture of thermal imaging lens | F#1.1 | |
| Thermal imaging gain control | High gain mode | |
| Thermal imaging noise reduction | 2D noise reduction | |
| Visible light | Sensor/type | AR0230/1080P |
| Pixel | 2 million | |
| Angle of viewing field | 62° | |
| Resolution ratio | 1920*1080 | |
| Visible light noise reduction | 2D noise reduction | |
| Signal to noise ratio | Max 41dB | |
| White balance | Automatic white balance | |
| Focal length of visible light lens | 4.35mm+/-5% | |
| Aperture of visible light lens | 2.0+/-5% | |
| Picture encoding format | Mjpg | |
| Temperature measurement parameters | Optimum working environment temperature | 25~32°℃ |
| Temperature measurement range of living things | 32~42℃ | |
| Environmental requirements | Indoor no wind environment | |
| Temperature measurement accuracy | Target temperature 35℃~40℃:Temperature measurement accuracy±0.5℃ | |
| Other temperature sections:Temperature measurement accuracy±3℃ | ||
| Regional temperature measurement | Support full-screen multi-face automatic tracking temperature measurement,Independent setting of alarm type | |
| Optimum temperature measurement distance | 2.5m | |
| Abnormal temperature alarm | Support alarm threshold setting of maximum temperature and minimum temperature | |
| Working humidity | <90% ( No condensation) | |
| Specification | Level of protection | A |
| Overall product size | 2230*910*400mm | |
| Passage size | 2000*720mm | |
| Package size | To be confirmed | |
| Net weight | 35 | |
| Rough weight | To be confirmed | |
| Power | Standard configuration | |

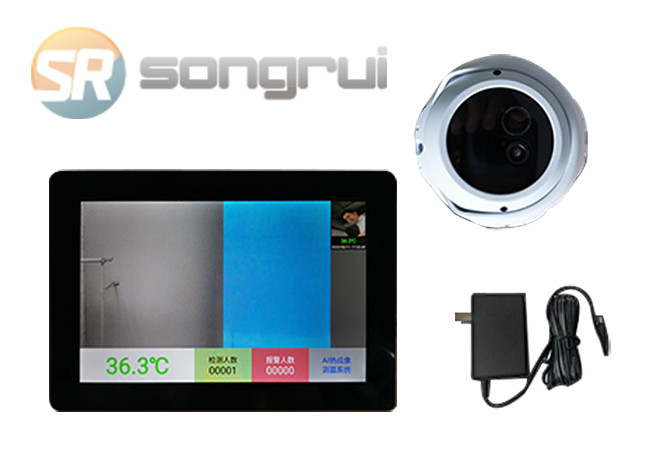

| Ballhead camera | Spherical camera material | Aluminium alloy |
| Spherical camera size | Bottom diameter 145* height 120* face diameter 90MM | |
| Display screen | Display size/Material | 260.54*178.54*25.5MM |
