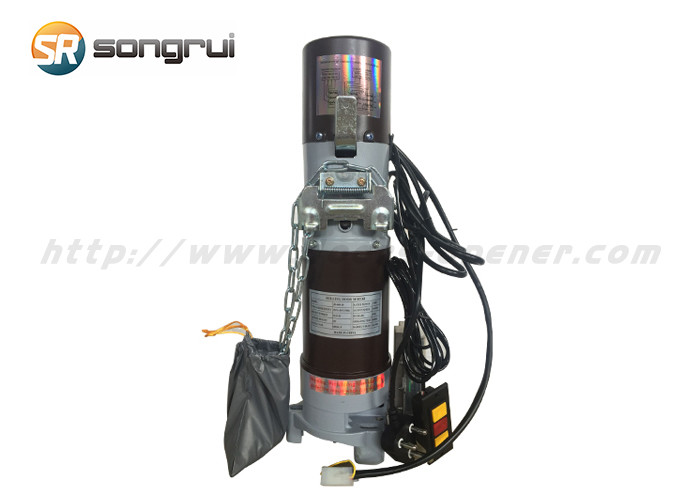

300KG Roller Shutter Door Motor

50 SETS
MOQ
Negotiable
Price
300KG Roller Shutter Door Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tubular Motor Roller Shutter
Type: JM300
Power Supply: 220V 50Hz
Power: 200w
Max. Lifting: 300kg
Max. Operating Range: 4m
High Light:

300KG Roller Shutter Door Motor

,

200W Roller Shutter Door Motor

,

220V electric shutter motor

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: JM300
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

Garage Rolling Door Opener Garage Door Opener JM300



Main Features:

1. Max upgrade weight: 1500KG
2. Max upgrade height: 9M
3. Short-time work system, continuous working not exceeding 5 mines.
4. Rolling Door Opener are using 220V or 380V AC power supply;
5. Can be matched with manually lock button and security locking;

6. Shell: aluminum alloy, solid and light;

7. Remote control: optional rolling code or fix code;
8. It is convenient to manual operation when power failed;

9. Thermal protection device could protect rolling door from damage and motor burned;
10. Operations are stable, low noise, small vibration.



Main Technical Parameters:

Model Power(w) Max. lifting (kg) RATED LOAD Max. operating range(m) Chain
(ANSI standard)
Output torque(n/m) Rotate speed(r/min)
220V/50Hz
JM-300-1P 200 300 168 4.6 4.5 08B
JM-500-1P 250 500 412 5.2 6 10A
JM-600-1P 370 600 412 4.6 6 10A
JM-800-1P 400 800 647 4.4 9 10A
JM-1000-1P 400 1000 809 4.4 9 12A
380V/50Hz
JM-1000-3P 400 1000 809 4.4 9 12A
JM-1500-3P 600 1500 1617 5.2 9 12A

300KG Roller Shutter Door Motor 0

300KG Roller Shutter Door Motor 1
