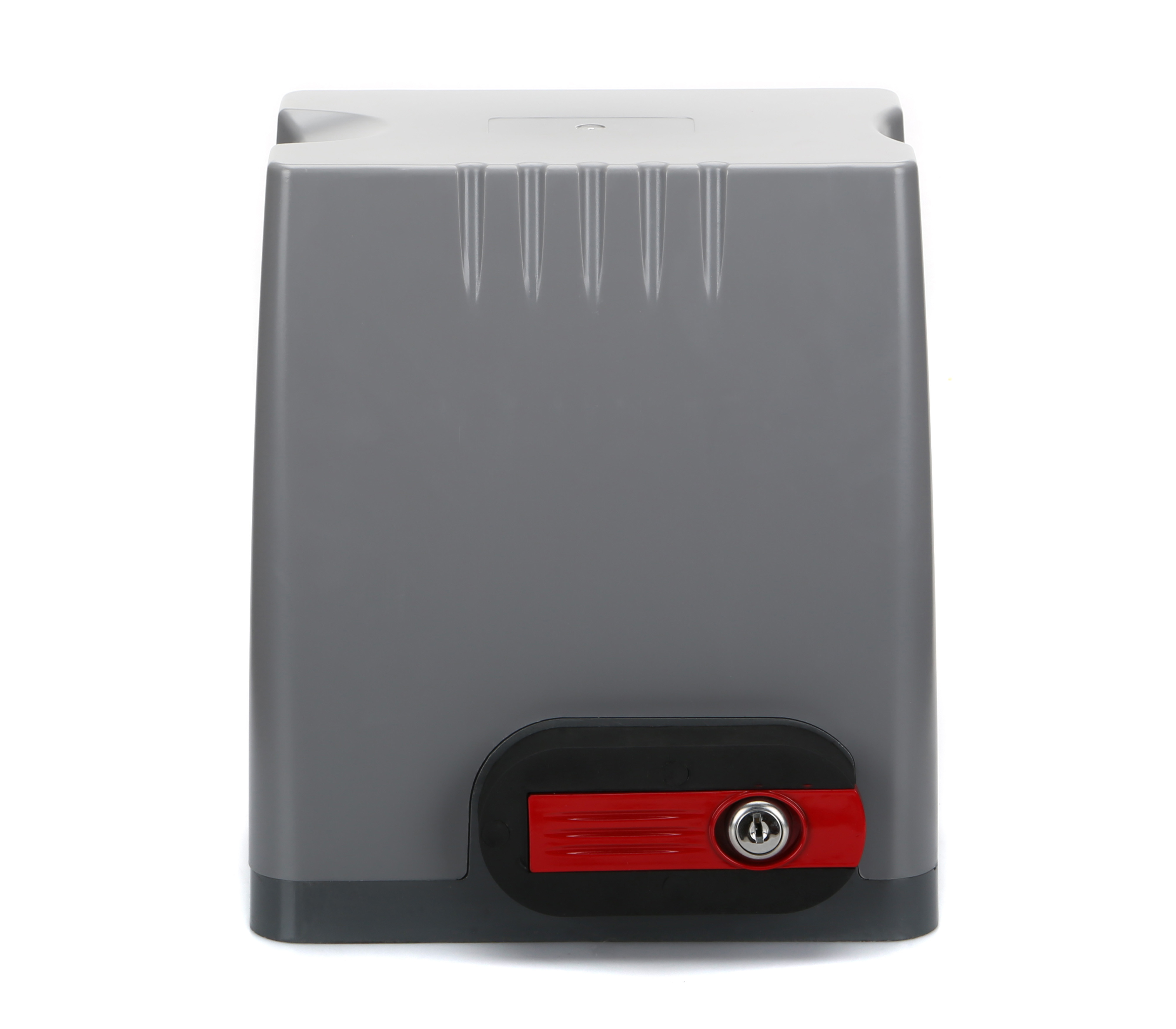

The model DKC500AC is new type, designed for maximum 500kg residential gate, soft start & slow stop, automatic reverse, automatic close functions.
Product features:
1. AC gate opener
2. Max.gate weight:500kg
3. New sealed motor with encoder
4. Slow start&stop with auto reverse in closing way.
Keypad / single button interface.
Photo beam safety beam interface.
User can select Auto-close function.
Manual key release design for emergency purposes.
Main technical parameters:
|
Unit Model |
DKC500DC |
DKC800DC |
DKC500AC |
DKC800AC |
|
Power supply |
AC220V/50Hz; AC110V/60Hz |
|||
|
Maximum gate weight |
500KG |
800KG |
500KG |
800KG |
|
Motor Power |
DC24V/150 |
DC24V/170 |
280W |
380W |
|
Output torque |
14N.m |
18N.m |
14N.m |
18N.m |
|
Work duty |
S2 20min |
|||
|
Limit switch |
Magnetic limit switch or spring limit switch |
|||
|
Gate moving speed |
11-13m/min |
16-18m/min |
13m/min |
13m/min |
|
Remote control range |
≥30md |
|||
|
recording of up remote controls |
25 |
|||
|
Frequency |
433.92MHz |
|||
|
Noise |
≤50db |
|||
|
Working temperature |
-20℃~+50℃ |
|||
|
Backup Battery |
Optional |
/ |
||
|
Driving Mode |
Gear |
Gear |
Gear |
Gear |
|
Package Weight |
11KG |
11KG |
10KG |
10KG |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
